GoGo EPE120 Peltier Electrical Heating and Cooling Stage

Probe-based Heating and Cooling Stages are engineered for temperature-dependent electrical characterisation of materials, enabling precise analysis of electrical property evolution with temperature. Constructed on an optical-stage platform, the system integrates an electrical module featuring probes, positioning mechanisms, and interfaces. Probes can be accurately positioned to establish reliable electrical contact with specific regions on the sample.Signals are transmitted via probes and cabling to external instruments—such as source meters and digital multimeters—for data acquisition and analysis under varying temperatures.

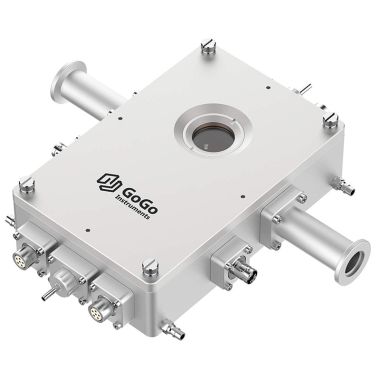

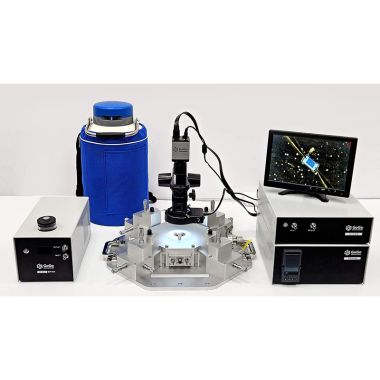

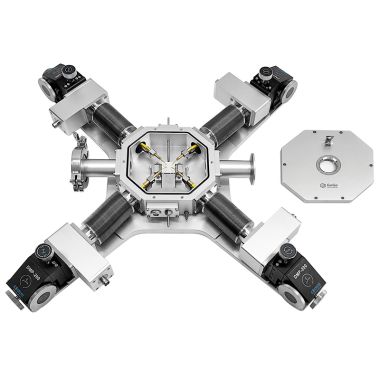

Based on probe holder design, these systems are available in three types: manually internal-adjusted, externally-adjusted and motorized electrically-adjusted probe stations.

The series delivers precise temperature control from 4K to 1700°C, incorporating advanced thermal management solutions: liquid helium/nitrogen cooling, thermoelectric cooling, resistive heating, infrared heating and laser heating—to support complex thermal experiments.

Multi-language SDKs (e.g., LabVIEW, C#) are provided to facilitate customised integration and automation.

The GoGo Instruments EPE120: Temperature Range -25℃~120℃.Temperature Stability±0.1℃.Multi-mode precision temperature control: setpoint, ramp, and segment programming.

Sample stage: reflection/transmission modes. Screw-top cover for easy access. Fixed probes are adopted, compatible with various optical instruments and electrical measurement devices.
