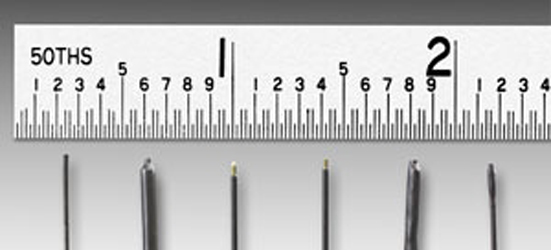

Thermocouple/RTD/Diode
Thermocouple/RTD/Diode
We can provide a range of temperature measurement/monitoring products to suit your application.
⤑ Read More
Thermocouple/RTD/Diode
-
SRS SIM921 AC Resistance Bridge
£3,550.80 £1.00Accurate millikelvin thermometry:
- Microvolt/picoamp excitation
- Measurements from 1 mΩ to 100 MΩ
- Variable excitation from 2 Hz to 60 Hz
- Linearised analog output
- Resistance, temperature and phase
-

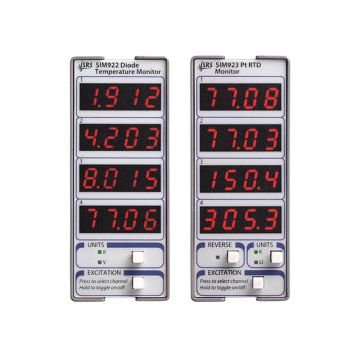

SRS SIM922 Diode Temperature Monitors
£2,010.00 £1.00- Four channels with independent displays
- 1.4 K to 475 K with silicon diodes
- 20 K to 873 K with platinum RTDs
- Memory for 4 calibration curves plus standard curve
-
SRS SIM922A Diode Monitor
- Single-channel LED display
- 1.4 K to 475 K with Si,
- GaAs or GaAlAs diodes
- 1.4 K to 873 K with RTDs
- Two analog outputs:
- Linearized V proportional to T
- Sensor voltage (buffered)
-
SRS SIM923 Platinum RTD Temperature Monitors
£2,010.00 £1.00- Four channels with independent displays
- 1.4 K to 475 K with silicon diodes
- 20 K to 873 K with platinum RTDs
- Memory for 4 calibration curves plus standard curve
-

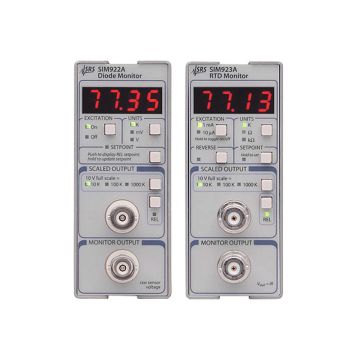

SRS SIM923A Platinum RTD Temperature Monitors
- Single-channel LED display
- 1.4 K to 475 K with Si, GaAs or GaAlAs diodes
- 1.4 K to 873 K with RTDs
- Linearized V proportional to T
- Sensor voltage (buffered)
- Remote interface
-
SRS SIM983 1 MHz Scaling Amplifier
- Adjustable gain and offset
- 3½-digit resolution
- 1 MHz bandwidth
- Low-noise input
- ±10 V operating range
-
SRS SR630 16 Channel Thermocouple Monitor
- 16 channels
- B, E, J, K, R, S and T type thermocouples
- 0.1°C resolution • Displays °C, °K, °F, and VDC
- 2,000 point non-volatile memory • Four analog outputs: V = ±mX + b
- May be used as a 1:15 analog multiplexer
- IEEE-488, RS-232, and printer interfaces
