GoGo EH1000V-EM Externally Adjustable High Temperature Probe Station
GoGo Instruments offers the EH1000V-EM, externally adjustable probing system with hot stage from RT~1000˚C. This tabletop solution is ideal for testing devices in extreme temperature environments.
- Temperature range: RT~1000°C (EH1000V-EM)
- Temperature stability: ±0.1°C
- Ceramic Sample Holder:- 20mm*20mm
- Vacuum Chamber
- XYZ Travel: ±12.5 mm
- High-Precision Temperature Control
- Professional Temperature Control Software
- Customisation available
Probe-based Heating and Cooling Stages are engineered for temperature-dependent electrical characterisation of materials, enabling precise analysis of electrical property evolution with temperature. Constructed on an optical-stage platform, the system integrates an electrical module featuring probes, positioning mechanisms and interfaces. Probes can be accurately positioned to establish reliable electrical contact with specific regions on the sample. Signals are transmitted via probes and cabling to external instruments—such as source meters and digital multimeters—for data acquisition and analysis under varying temperatures.
Based on probe holder design, these systems are available in three types: manually internal-adjusted, externally-adjusted and motorized electrically-adjusted probe stations.
The series delivers precise temperature control from 4K to 1700°C, incorporating advanced thermal management solutions: liquid helium/nitrogen cooling, thermoelectric cooling, resistive heating, infrared heating and laser heating—to support complex thermal experiments.
Multi-language SDKs (e.g., LabVIEW, C#) are provided to facilitate customised integration and automation.
Additional Information
| No. of Channels | 4 |
|---|---|
| Minimum Temperature | RT |
| Maximum Temperature | 1000°C |
| Sample Size | 20mm x 20mm |
| TYPE | EH1000V-EM |
| Cooling/Heating Method | Resistance heating |
| Temperature Range | RT~1000℃ |
| Temperature Stability | ±0.1℃ |
| Heating/Cooling Rate | Maximum Heating Rate：150℃/min, Controllable Cooling Rate |
| Sample Holder | Ceramic; 20mm*20mm |
| Optical Path | Reflection |
| Top Window Size | φ25mm*1mm |
| Window Material | JGS2 Fused Silica Glass (Transmission Range: 220 nm - 2500 nm), manually removable and replaceable. |
| Distance from Window Upper Surface to Sample Holder Upper Surface | 33.5mm |
| Chamber Height | 29.5mm |
| Probe | Gold-plated tungsten probe*4 |
| Probe Adjustment | XYZ Travel: ±12.5mm |
| Probe Port | Triaxial BNC*4 |
| Sample Stage Potential | Grounded / Electrically Floating |
| Chamber | Vacuum |
| Dimensions | 520mm*520mm*145mm |
| Net Weight | 22kg |
| Basic Configuration |
GoGo TCS Control Software Externally Adjustable Probe Station*1 Temperature Controller*1 Recirculating Chiller*1 Cables, Tubing and Accessories |
| Optional |
Adapter Plate Transmitted Light Option Customised Recirculating Chiller Customised Probe Customised Probe Port Customised Temperature Control Software
|
GoGo Electrical Application Products Brochure| Photo | Product | No. of Channels | Minimum Temperature | Maximum Temperature | Sample Size | Price | |
|---|---|---|---|---|---|---|---|
 |
GoGo EPE120 Peltier Electrical Heating and Cooling Stage | 4 | -25˚C | 125˚C | 40mm x 40mm | > | |
|
|
GoGo EH1000/EH1200 Ultra-High-T Electrical Heating Stage | 4 | RT | 1000°C | 30mm x 30mm | > | |
 |

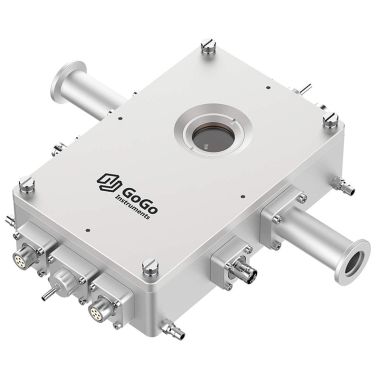

GoGo Instruments ECH400V-EC Motorised Probe Station JS | - | - | - | - | > | |
 |

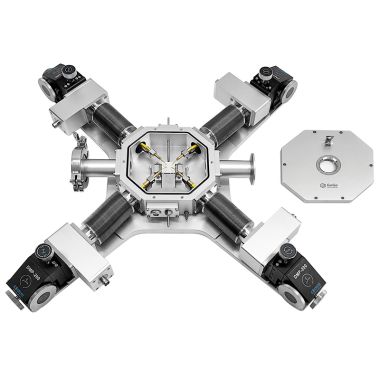

GoGo Instruments ECH400V-EB Externally Adjustable Probe Station JS | - | - | - | - | > | |
 |

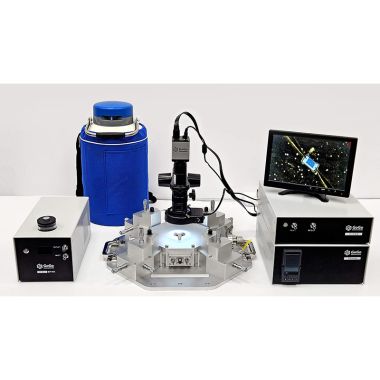

GoGo Instruments ECH400V-EM Externally Adjustable Probe Station JS | - | - | - | - | > | |
 |

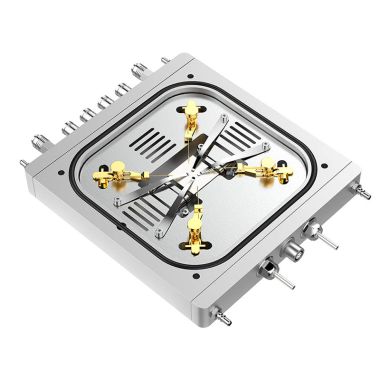

GoGo Instruments ECH600 Electrical Heating and Cooling Stage JS | - | - | - | - | > | |
 |

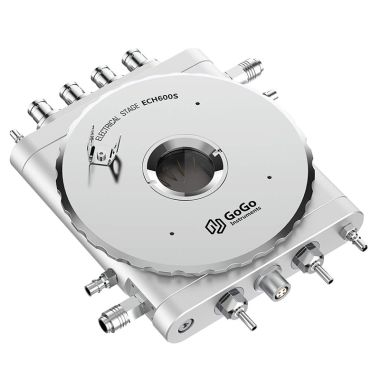

GoGo Instruments ECH600S Electrical Heating and Cooling Stage JS | - | - | - | - | > |
