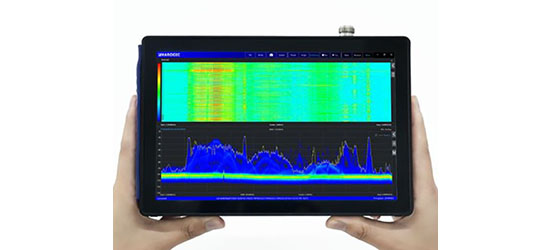

The new PXE-200 is a 20GHz ultra-portable handheld Realtime Spectrum Analyser (RSA).Weighing just 1.4 kg and a 10.1-inch all touch screen , this unit is built on the success of the SAE-200 unit. This is a great alternative to other handheld spectrum analysers on the market offering high performance in a small ultra-portable design. Combined with an impressive battery life over 3 hours is an excellent choice for field testing.

• Frequency range: 9 kHz-20 GHz SHR architecture, 19-segments pre-selected filters;
• Sweep speed > 900 GHz/s (RBW ≥ 300 kHz)
• Analytical bandwidth: 100 MHz (std.), 110 MHz (opt.)
• Standard preamplifier, DANL: -168 dBm/Hz (typ.)
• SSB Phase Noise: -100 dBc/Hz @10kHz (1 GHz typ.)
• Typical IF rejection > 90dB; Typical image suppression: 90 dB (≤9 GHz), >60 dB (≤20 GHz);
• Channel power, ACPR, IM3, OBW, Phase noise Real-time spectrum analysis based on FPGA, 100% POI < 3us;
• Analogue modulation analysis: AM/FM; Time domain IQ, PvT, real-time spectrum R&P;
• Weight: 1.4 kg, 10.1-inch all touch screen;
• Battery life: 3h+, support power bank supply;
• 3 years warranty. HDMI interface support, expandable desktop station.

The new PXE-200R is a ruggedised version of the PXE-200, 20GHz ultra-portable handheld Realtime Spectrum Analyser (RSA). Weighing just 2.5 kg and a 10.1-inch all touch screen , this unit is built on the success of the SAE-200 unit. This is a great alternative to other handheld spectrum analysers on the market offering high performance in a small ultra-portable design. Combined with an impressive battery life over 3 hours is an excellent choice for field testing.

• IEC IP68 certified
• MIL-STD-810H method-512.6/514.8/516.8 certified
• Frequency range: 9 kHz-20 GHz SHR architecture, 19-segments pre-selected filters;
• Sweep speed > 900 GHz/s (RBW ≥ 300 kHz)
• Analytical bandwidth: 100 MHz (std.), 110 MHz (opt.)
• Standard preamplifier, DANL: -168 dBm/Hz (typ.)
• SSB Phase Noise: -100 dBc/Hz @10kHz (1 GHz typ.)
• Typical IF rejection > 90dB; Typical image suppression: 90 dB (≤9 GHz), >60 dB (≤20 GHz);
• Channel power, ACPR, IM3, OBW, Phase noise Real-time spectrum analysis based on FPGA, 100% POI < 3us;
• Analogue modulation analysis: AM/FM; Time domain IQ, PvT, real-time spectrum R&P;
• Weight: 2.5 kg, 10.1-inch all touch screen
• Battery life: 3h+, support power bank supply;
• 3 years warranty. HDMI interface support, expandable desktop station.

HAROGIC PXE-200Z handheld spectrum analyser is up to 20 GHz with 100 MHz bandwidth. It is the latest spectrum analyser based on Windows 11 operating system and AMD Z1 extreme CPU for effective field computing analysis.

• Windows11 operating system
• 1.2 kg lightweight, 8.8-inch multi touchscreen
• Frequency range: 9 kHz to 20 GHz
• 1 GHz DANL: -161 dBm/Hz
• 1 GHz phase noise: -107 dBc/Hz@10 kHz
• Analysis bandwidth: up to 100 MHz
• CPU: high performance AMD Z1 Extreme
• 16 GB RAM and 512 GB SSD

The new PXE-400R is a ruggedised version of the PXE-400, 40GHz ultra-portable handheld Realtime Spectrum Analyser (RSA). Weighing just 2.5 kg and with a 10.1-inch all touch screen, this unit is built on the success of the SAE-200 unit. This is a great alternative to other handheld spectrum analysers on the market offering high performance in a small ultra-portable design. Combined with an impressive battery life over 3 hours it is an excellent choice for field testing.

• IEC IP68 certified
• MIL-STD-810H method-512.6/514.8/516.8 certified
• Frequency range: 9 kHz-40 GHz SHR architecture, 11-segments pre-selected filters
• Sweep speed > 400 GHz/s (RBW ≥ 300 kHz)
• Analytical bandwidth: 100 MHz (std.), 110 MHz (opt.)
• Standard preamplifier, DANL: -168 dBm/Hz (typ.)
• SSB Phase Noise: -100 dBc/Hz @10kHz (1 GHz typ.)
• Typical IF rejection > 90dB; Typical image suppression: 90 dB (≤9 GHz), >60 dB (≤20 GHz)
• Channel power, ACPR, IM3, OBW, Phase noise Real-time spectrum analysis based on FPGA, 100% POI < 3us
• Analogue modulation analysis: AM/FM; Time domain IQ, PvT, real-time spectrum R&P
• Weight: 2.5 kg, 10.1-inch all touch screen
• Battery life: 3h+, support power bank supply
• 3 years warranty. HDMI interface support, expandable desktop station

The new PXE-90 is a 9.5GHz ultra-portable handheld Realtime Spectrum Analyser (RSA).

• Frequency range: 9 kHz-9.5 GHz SHR architecture, 19-segments pre-selected filters;
• Sweep speed > 830 GHz/s (RBW ≥ 300 kHz)
• Analytical bandwidth: 100 MHz (std.)
• Standard preamplifier, DANL: -168 dBm/Hz (typ.)
• SSB Phase Noise: -100 dBc/Hz @10kHz (1 GHz typ.)
• Typical IF rejection > 90dB; Typical image suppression: 90 dB (≤9 GHz), >60 dB (≤20 GHz);
• Channel power, ACPR, IM3, OBW, Phase noise Real-time spectrum analysis based on FPGA, 100% POI < 3us;
• Analogue modulation analysis: AM/FM; Time domain IQ, PvT, real-time spectrum R&P;
• Weight: 1.4 kg, 10.1-inch all touch screen;
• Battery life: 3h+, support power bank supply;
• 3 years warranty. HDMI interface support, expandable desktop station.

The new PXE-90R is a ruggedised version of the PXE-90, 9.5GHz ultra-portable handheld Realtime Spectrum Analyser (RSA). Weighing just 2.5 kg and with a 10.1-inch all touch screen, this unit is built on the success of the SAE-90 unit. This is a great alternative to other handheld spectrum analysers on the market offering high performance in a small ultra-portable design. Combined with an impressive battery life over 3 hours it is an excellent choice for field testing.

• IEC IP68 certified
• MIL-STD-810H method-512.6/514.8/516.8 certified
• Frequency range: 9 kHz-9.5GHz SHR architecture, 19-segments pre-selected filters
• Sweep speed > 900 GHz/s (RBW ≥ 300 kHz)
• Analytical bandwidth: 100 MHz (std.), 110 MHz (opt.)
• Standard preamplifier, DANL: -168 dBm/Hz (typ.)
• SSB Phase Noise: -100 dBc/Hz @10kHz (1 GHz typ.)
• Typical IF rejection > 90dB; Typical image suppression: 90 dB (≤9 GHz), >60 dB (≤20 GHz)
• Channel power, ACPR, IM3, OBW, Phase noise Real-time spectrum analysis based on FPGA, 100% POI < 3us
• Analogue modulation analysis: AM/FM; Time domain IQ, PvT, real-time spectrum R&P
• Weight: 2.5 kg, 10.1-inch all touch screen
• Battery life: 3h+, support power bank supply
• 3 years warranty. HDMI interface support, expandable desktop station

HAROGIC PXE-90Z handheld spectrum analyser is up to 9.5GHz with 100 MHz bandwidth. It is the latest spectrum analyser based on Windows 11 operating system and AMD Z1 extreme CPU for effective field computing analysis.

• Windows11 operating system
• 1.2 kg lightweight, 8.8-inch multi touchscreen
• Frequency range: 9 kHz to 9.5GHz
• 1 GHz DANL: -168 dBm/Hz
• 1 GHz phase noise: -100 dBc/Hz@10 kHz
• Analysis bandwidth: up to 100 MHz
• CPU: high performance AMD Z1 Extreme
• 16 GB RAM and 512 GB SSD

The new PXN-400 is a 40GHz ultra-portable handheld Realtime Spectrum Analyser (RSA). Weighing just 1.5 kg and with a 10.1-inch all touch screen. This is a great alternative to other handheld spectrum analysers on the market offering high performance in a small ultra-portable design. Combined with an impressive battery life over 3 hours it is an excellent choice for field testing.

• Frequency range: 9 kHz-40 GHz SHR architecture, 11-segments pre-selected filters
• Sweep speed > 500 GHz/s (RBW ≥ 300 kHz)
• Analytical bandwidth: 100 MHz (std.)
• Standard preamplifier, DANL: -161 dBm/Hz (typ.)
• SSB Phase Noise: -107 dBc/Hz @10kHz (typ.)
• Weight: 1.5 kg, 10.1-inch all touch screen
• Battery life: 3h+, support power bank supply
• 3 years warranty. HDMI interface support, expandable desktop station

HAROGIC PXN-400Z handheld spectrum analyser is up to 40 GHz with 100 MHz bandwidth. It is the latest spectrum analyser based on Windows 11 operating system and AMD Z1 extreme CPU for effective field computing analysis.

• Windows11 operating system
• 1.2 kg lightweight, 8.8-inch multi touchscreen
• Frequency range: 9 kHz to 40 GHz
• 1 GHz DANL: -161 dBm/Hz
• 1 GHz phase noise: -107 dBc/Hz@10 kHz
• Analysis bandwidth: up to 100 MHz
• CPU: high performance AMD Z1 Extreme
• 16 GB RAM and 512 GB SSD
