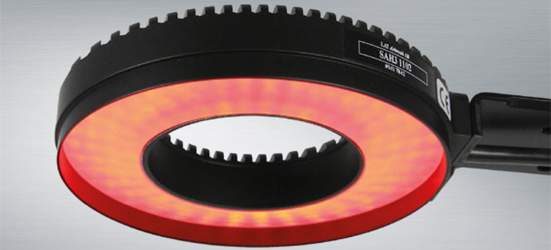

Ring Lighting

Ring lights offer uniformed illumination of objects at their working distance, providing shadow free lighting. Together with a polarisation filter the exacting technical design of these lights allows them to effectively illuminate reflective objects. By reducing glare, contrast is ...

⤑ Read More

The standard light beam is 12° but custom builds are available from 0° to 40°. Brackets and diffuses are included (SXX3 010213, for details see bracket options). Ring lights are available in a wide range of sizes from 44-348 mm. In addition to the standard colours of red and white, the lights are also available in blue, green, UV, and IR.

Special RGB lights are built with high-power three-chips LED; red, green, and blue. Enabling the use of each colour separately or in combination. From these units white lights can be achieved by setting each channel to the same intensity level. The available dimensions and working distances of the RGB option remains the same as the standard ring lights. For all RGB lights 4 channel controllers are required.

Technical data for the range of Ring lights

For ordering please select colour specific part for red (H) and white (W) lighting. All other colours please call for quotation.

For further customisation of units, capable specification adjustments.

Ring Lights with Directional Light Beam Angle

Specifically designed for the illumination of cylindrical objects, these ring lights are designed with a 50° inward aligned output. In terms of function they perform between standard ring lights and dark field lights.

Bracket (PN: SXX3 010213) is supplied. Available in red, white, IR, blue and green.

Technical specification of these units.

Accessories

Polarisation Filters are available for ring lighting.

Technical data.

Ring Lighting

Product	Colour	Product	Outer Diameter (mm)	Price
LATAB SAH3 1044	Red	Ring Light	-	>
LATAB SAH3 1078	Red	Ring Light	-	>
LATAB SAH3 1102	Red	Ring Light	-	>
LATAB SAH3 1132	Red	Ring Light	-	>
LATAB SAH3 1162	Red	Ring Light	-	>
LATAB SAH3 1202	Red	Ring Light	-	>
LATAB SAH3 1348	Red	Ring Light	-	>
LATAB SAW3 1044	White	Ring Light	-	>
LATAB SAW3 1078	White	Ring Light	-	>
LATAB SAW3 1102	White	Ring Light	-	>
LATAB SAW3 1132	White	Ring Light	-	>
LATAB SAW3 1162	White	Ring Light	-	>
LATAB SAW3 1202	White	Ring Light	-	>
LATAB SAW3 1348	White	Ring Light	-	>
LATAB SAX3 1044	-	Ring Light	-	>
LATAB SAX3 1078	-	Ring Light	-	>
LATAB SAX3 1132	-	Ring Light	-	>
LATAB SAX3 1162	-	Ring Light	-	>
LATAB SAX3 1202	-	Ring Light	-	>
LATAB SAX3 1348	-	Ring Light	-	>
LATAB SAX3 3104	White	Ring Light	-	>
LATAB SAX3 3184	-	Ring Light	-	>
