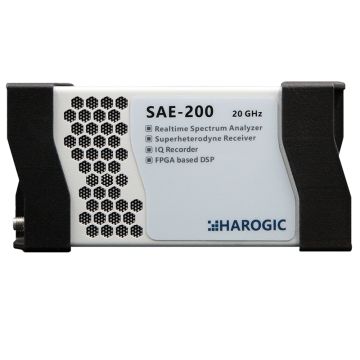

• 9 kHz~20 GHz real-time spectrum analyzer/receiver
• Superheterodyne digital receiver architecture, 19segments pre-selected filter
• 9 kHz~9 GHz typical image suppression>90 dB, typical IF rejection>90 dB
• 9 GHz~20 GHz typical image suppression>60 dB, typical IF rejection>90 dB
• 100 MHz analysis bandwidth with adjustable sampling rate, 1.2 THz/sec spectrum sweep speed
• FPGA based digital signal processing
• Weight 195 grams (core module), size 125 × 60 × 15 mm, power consumption 10-14 W
• Highly compatible API interfaces and SAStudio4 GUI
• Compatible with ARM and x86 processors, Linux and Windows operating systems
• Operating temperatures range from – 20 ℃/- 40 ℃ to 70 ℃ (option)
• Built-in OCXO (option)

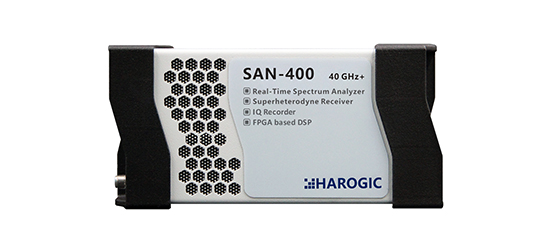

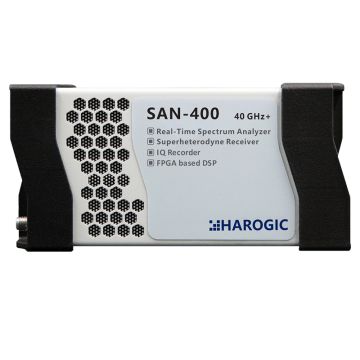

The HAROGIC Technologies SAN-400 is a small, but powerful 40 GHz Real-Time Spectrum Analyser/Receiver. Offering impressive performance

• 400 GHz/sec spectrum sweep speed,
• 100 MHz analysis bandwidth with adjustable sampling rate
• Superheterodyne digital receiver architecture, 14 segments pre-selected filter;
• Typical image suppression and IF rejection>75 dBc;
• 100 MHz analysis bandwidth with adjustable sampling rate
• 40 GHz DANL=-141 dBm/Hz, Phase Noise=-86 dBc/Hz@10 kHz;
• Highly compatible API interface and SAStudio4 application software
• USB3.0/2.0 Type C supported.

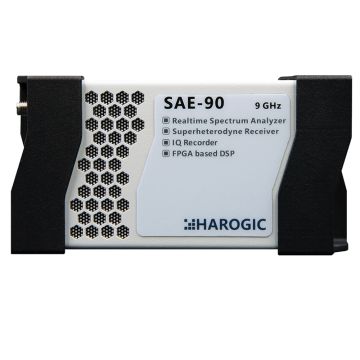

• 9 kHz~9.5 GHz real-time spectrum analyzer/receiver
• Superheterodyne digital receiver architecture, 14segments pre-selected filter
• 9 kHz~9.5 GHz typical image suppression>90 dB, typical IF rejection>90 dB
• 100 MHz analysis bandwidth with adjustable sampling rate, 1.2 THz/sec spectrum sweep speed
• FPGA based digital signal processing
• Weight 188 grams (core module), size 118 × 60 × 15 mm, power consumption 10-14 W
• Highly compatible API interfaces and SAStudio4 GUI
• Compatible with ARM and x86 processors, Linux and Windows operating systems
• Operating temperatures range from – 20 ℃/- 40 ℃ to 70 ℃ (option)
• USB 3.0/2.0 Type-C interface

• 9 kHz~8.5 GHz real-time spectrum analyzer/receiver
• Integrated 100 kHz-6.3 GHz analog signal generator (option)
• 100MHz analysis bandwidth, 300 GHz/sec spectrum sweep speed
• FPGA based digital signal processing
• Weight 159 grams (core module), size 142 × 54 × 16 mm, power consumption 7-10 W
• Highly compatible API interfaces and SAStudio4 GUI
• Compatible with ARM and x86 processors, Linux and Windows operating systems
• Operating temperatures range from -20 ℃/-40 ℃ to 70 ℃ (option)
• USB 3.0/2.0 Type-C interface

• 9 kHz~6.3 GHz real-time spectrum analyzer/receiver
• Integrated 100 kHz-6.3 GHz analog signal generator (option)
• 100 MHz analysis bandwidth, 300 GHz/sec spectrum sweep speed
• FPGA based digital signal processing
• 1GHz phase noise: -114 dBc/Hz@10kHz
• 1GHz DANL: -167 dBm/Hz
• Weight 168 grams (core module), size 142mm×54mm×16mm, power consumption 7-10 W
• Highly compatible API interfaces and SAStudio4 GUI
• Compatible with ARM and x86 processors, Linux and Windows operating systems
• Operating temperatures range from -20 oC/-40 oC to 70 oC (option)
• Built-in OCXO (option), temperature drift≤0.15 ppm
• USB3.0/2.0 Type-C interface

• Outstanding device performance and price advantage
• 9 kHz~6.3 GHz real-time spectrum analyzer
• Integrated 100 kHz-6.3 GHz analog signal generator (option)
• 25 MHz analysis bandwidth, 100 GHz/s sweep speed, FPGA signal processing
• Typical phase noise: 1GHz carrier -110 dBc/Hz@10 kHz
• Standard preamplifier, DANL: -162 dBm/Hz
• Core module supported, light as 168 g, 142x54x16 mm, power consumption 7~10 W
• Highly compatible API interfaces (HTRA API)and SAStudio4 GUI
• Compatible with ARM and x86 processors, Linux and Windows operating systems
• Operating temperatures range from – 20 ℃/- 40 ℃ to 65 ℃ (opt.)
• Built-in OCXO (option), temperature drift≤0.15 ppm
• USB3.0/2.0 Type-C interface

The new HAROGIC SAN-45 is a USB-based spectrum analyser and receiver featuring a frequency range of 9kHz to 4.5GHz. Designed to deliver high performance on a budget with essential measurement functions such as channel power, automatic harmonics, phase noise, and AM/FM analog demodulation. Its highly compatible APIs facilitate seamless secondary development, offering customers exceptional versatility and value.

The new HAROGIC SAN-60 is a USB-based spectrum analyser and receiver featuring a frequency range of 9kHz to 6GHz. Designed to deliver high performance on a budget with essential measurement functions such as channel power, automatic harmonics, phase noise, and AM/FM analog demodulation. Its highly compatible APIs facilitate seamless secondary development, offering customers exceptional versatility and value.

The new HAROGIC SAN-90 is a USB-based spectrum analyser and receiver featuring a frequency range of 9kHz to 6GHz. Designed to deliver high performance on a budget with essential measurement functions such as channel power, automatic harmonics, phase noise, and AM/FM analog demodulation. Its highly compatible APIs facilitate seamless secondary development, offering customers exceptional versatility and value.
