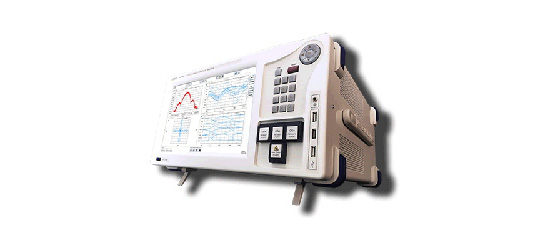

Ultra-High Resolution Optical Spectrum Analysers
Ultra-High Resolution Optical Spectrum Analysers
Apex Technologies’ unique ultra-high resolution telecoms band OSA’s give you the highest wavelength resolution currently available (5MHz / 0.04pm). Their Optical Complex OSA (OCSA) provides phase measurements for full modulation analysis, completely independent of modulation format.
⤑ Read More
Ultra-High Resolution Optical Spectrum Analysers
-
Apex OCSA-APX High Resolution Complex Optical Spectrum Analyser
Ideal solution for Telecommunication applications, the APEX Optical Complex Spectrum Analyzer (OCSA) Series is equipped with the high resolution of 5 MHz/0.04 pm, as well as other resolution bandwidth from 20 to 140 MHz. Additionally, the complex OSAs offer additional time domain measurement capability, including intensity, phase and chirp measurements
Available options:
- The optical output of the built-in Tunable Laser Source (TLS), which could also be used for component analysis (tracking function);
- 2 additional PM inputs
- Polarisation analysis is possible through a polarimeter (SOP, DOP, and PER measurement). This option can displacy three polarisation modes: Jones graph, Poincaré sphere and Stokes parameter oscilloscope.
-
Apex OSA-APX High Resolution Optical Spectrum Analyser
Ideal solution for Telecommunication applications, the APEX Optical Spectrum Analyzer (OSA) Series is equipped with the high resolution of 5 MHz/0.04 pm, as well as other resolution bandwidth from 20 to 140 MHz.
Available options:
- • The optical output of the built-in Tunable Laser Source (TLS), which could also be used for component analysis (tracking function);
- • 2 additional PM inputs
- • Polarisation analysis is possible through a polarimeter (SOP, DOP, and PER measurement). This option can displacy three polarisation modes: Jones graph, Poincaré sphere and Stokes parameter oscilloscope.
