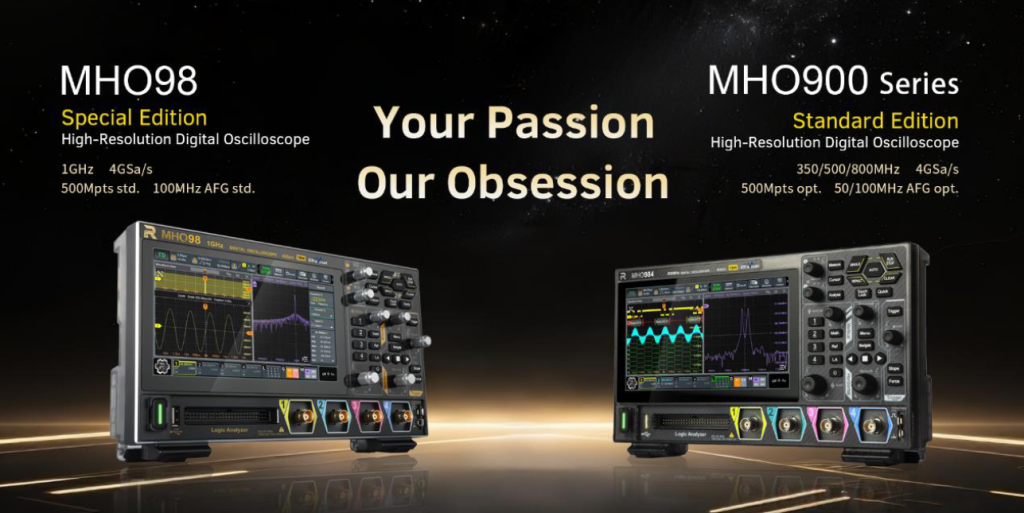

Lambda Photometrics is pleased to announce the arrival of the Rigol MHO900 Series Mixed Signal Oscilloscopes – a new generation of high-performance instruments designed to deliver exceptional signal fidelity, advanced analysis capability, and modern connectivity in a compact and portable form factor.
The MHO900 series combines 12-bit vertical resolution, up to 4 GSa/s sampling rate, and bandwidths up to 800 MHz across four analogue channels, with optional 16-channel mixed-signal capability. These features make the range ideal for applications in embedded system design, power electronics, automotive electronics, and general research and development.
Built around Rigol’s latest Phoenix ASIC platform, the MHO900 series delivers high waveform update rates (up to 1,000,000 wfms/s in UltraAcquire mode), deep acquisition memory, and comprehensive serial bus decoding. Integrated Wi-Fi, Bluetooth, LAN, USB-C, and HDMI interfaces provide flexibility for both bench and field-based testing environments.
| Model | Bandwidth | Channels | Real-Time Sampling | Memory Depth | Price (ex. VAT) |
| MHO934 | 350 MHz | 4 analogue | 4 GSa/s | up to 500 Mpts | £704 |
| MHO954 | 500 MHz | 4 analogue | 4 GSa/s | up to 500 Mpts | £787 |
| MHO984 | 800 MHz | 4 analogue | 4 GSa/s | up to 500 Mpts | £869 |
Key Technical Features
- 12-bit ADC resolution – 16× finer vertical precision than 8-bit instruments
- Up to 4 GSa/s real-time sampling rate for accurate capture of high-speed signals
- Deep acquisition memory (up to 500 Mpts) for long-duration waveform analysis
- Optional 16-channel mixed signal input for digital/analogue correlation
- High waveform capture rate (1,000,000 wfms/s in UltraAcquire mode)
- Integrated 100 MHz dual-channel waveform generator with Bode plot functionality
- Comprehensive protocol decoding – I²C, SPI, UART, CAN, LIN
- Connectivity: Wi-Fi, Bluetooth, LAN, USB-C, HDMI
- Compact design with USB-C power – ideal for laboratory or field use
Applications
- Embedded system and microcontroller debugging
- Power supply and control loop characterisation
- Automotive and industrial electronics analysis
- Research, education, and training environments
The Rigol MHO900 Series establishes a new benchmark in affordable, high-resolution mixed-signal oscilloscopes. By combining 12-bit precision, deep memory, and comprehensive connectivity, it offers engineers a robust and flexible platform for accurate signal measurement and analysis.
Explore the full range and specifications click here.
To speak with one of our Sales & Applications Engineers please call 01582 764334.
Lambda Photometrics is the leading UK Distributor of Characterisation, Measurement and Analysis solutions with particular expertise in Instrumentation, Laser & Light based products, Optics, Electro-optic Testing, Spectroscopy, Machine Vision, Optical Metrology, Fibre Optics, Microscopy and Anti-vibration tables & custom solutions.
-
Rigol MHO984 800MHz, 4 Channel, 4GSa/s, 12-Bit, Mixed Signal Digital Oscilloscope
£1,036.80 £1.00The Rigol MHO900 Series high-resolution digital oscilloscopes are the latest members of RIGOL’s Ultra-Portable family, featuring up to 1 GHz analogue bandwidth (MHO98 only), 4 GSa/s real-time sampling, and 500 Mpts memory depth. Beyond its powerful specifications, the MHO984 integrates a wealth of functions into a compact, portable design—delivering engineers an exceptional testing experience.
- 800MHz Analogue Bandwidth
- 4 Analogue Channels
- 4 GSa/s Real Time Sampling Rate
- 100 Mpts Memory depth (500 Mpts Optional)
- 16 Digital Channels (Optional)
- Bode plot (Optional)
Introduction offer
To celebrate the launch of the MHO900 series, the AFG50 option (worth £280), is available free of charge on the MHO984 and MHO954. -
Rigol MHO954 500MHz, 4 Channel, 4 GSa/s, 12-Bit, Mixed Signal Digital Oscilloscope
£844.80 £1.00The Rigol MHO900 Series high-resolution digital oscilloscopes are the latest members of RIGOL’s Ultra-Portable family, featuring up to 1 GHz analogue bandwidth (MHO98 only), 4 GSa/s real-time sampling, and 500 Mpts memory depth. Beyond its powerful specifications, the MHO954 integrates a wealth of functions into a compact, portable design—delivering engineers an exceptional testing experience.
- 500MHz Analogue Bandwidth
- 4 Analogue Channels
- 4 GSa/s Real Time Sampling Rate
- 100 Mpts Memory depth (500 Mpts Optional)
- 16 Digital Channels (Optional)
- Bode plot (Optional)
Introduction offer
To celebrate the launch of the MHO900 series, the AFG50 option (worth £280), is available free of charge on the MHO984 and MHO954. -
Rigol MHO934 350MHz, 4 Channel, 4 GSa/s, 12-Bit, Mixed Signal Digital Oscilloscope
£843.60 £1.00The Rigol MHO900 Series high-resolution digital oscilloscopes are the latest members of RIGOL’s Ultra-Portable family, featuring up to 1 GHz analogue bandwidth (MHO98 only), 4 GSa/s real-time sampling, and 500 Mpts memory depth. Beyond its powerful specifications, the MHO934 integrates a wealth of functions into a compact, portable design—delivering engineers an exceptional testing experience.
- 350MHz Analogue Bandwidth
- 4 Analogue Channels
- 4 GSa/s Real Time Sampling Rate
- 100 Mpts Memory depth (500 Mpts Optional)
- 16 Digital Channels (Optional)
- Bode plot (Optional)
