CO2 Electroreduction

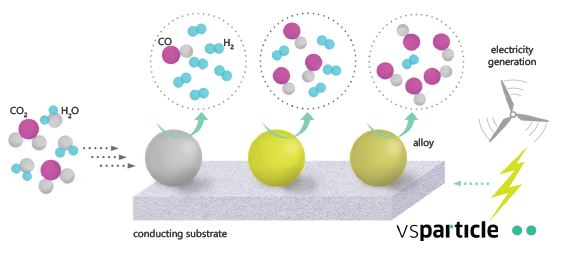

CO2 electroreduction is a promising technology that uses intermittent renewable electricity and CO2 emissions to product fuels (e.g. methanol) and other economically relevant products (e.g. syngas). One of the great promises of this technology is to recycle the CO2 produced by factories, reducing CO2 emissions and its impact to climate change.
In order for CO2 electroreduction to play a major role in the energy transition, the main components of a CO2 electroreduction device, the electrocatalysts, need to be optimised to produce fuels or chemicals efficiently and selectively.
CLICK HERE to download the full Catalysis application note.
For further information, application support, demo or quotation requests please contact us on 01582 764334 or click here to email.
Lambda Photometrics is a leading UK Distributor of Characterisation, Measurement and Analysis solutions with particular expertise in Electronic/Scientific and Analytical Instrumentation, Laser and Light based products, Optics, Electro-optic Testing, Spectroscopy, Machine Vision, Optical Metrology, Fibre Optics and Microscopy.
-

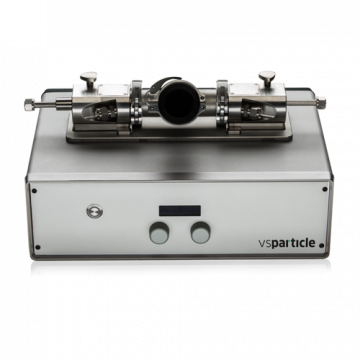

VSPARTICLE VSP-G1 Nanoparticle Generator
A table-top, user-friendly nanoparticle generator that is the basis of all VSPARTICLE products. With the VSP-G1, a stable and clean flow of well-defined pure nanoparticles can be generated, without the use of precursors and surfactants. Producing the desired particles becomes as easy as pushing a button.
-

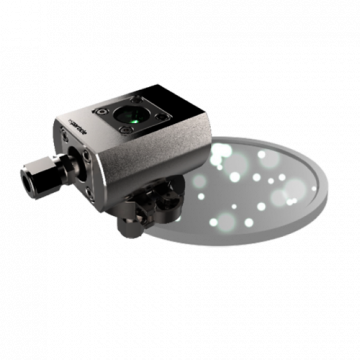

VSPARTICLE VSP-A1 Diffusion Deposition
- Dispersed, unagglomerated particles
- Sample ready in 1-10 minutes
- From hypothesis to particle sample in less than one hour
- Sample size 10x10mm
- Substrate types: e.g. (in-situ) TEM chips, Electrodes, (doped) Si chips
- Production rate: 1-10mg per hour
-

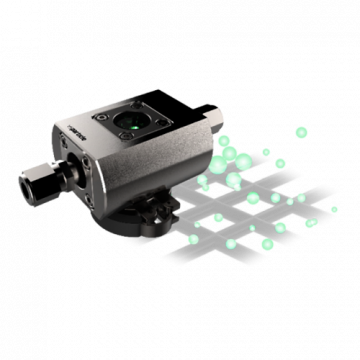

VSPARTICLE VSP-A2 Filtration Deposition
- Mix & match oxides and metallic nanoparticles
- Collect particles with in-line filter
- Bottom-up catalyst fabrication
- Type of substrates: porous membranes, electrospun wires, carbon cloth
- substrate size ø47mm
-

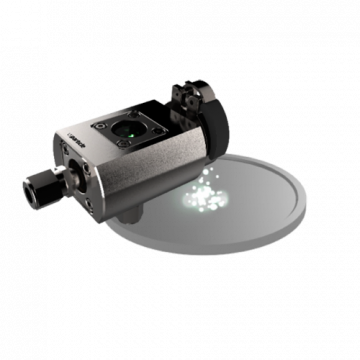

VSPARTICLE VSP-A3 Impaction Deposition
- Grow a nanoporous oxide layer
- Useful as catalyst support/sensitive material
- Type of substrates: glass, Si, TEM grids, MEMS chips etc
- Max. deposited area: ø3 mm
-
VSPARTICLE VSP-Electrodes
- Base materials, exotic materials, alloys supported
- Log electrode history with unique electrode serial number
- Switch electrodes and reproduce in matter of minutes
-

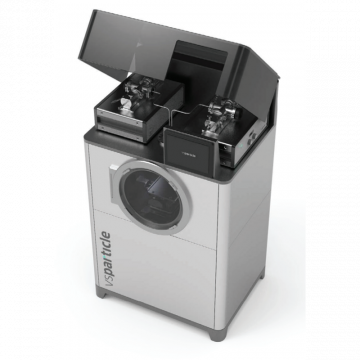

VSPARTICLE VSP-P1 Nanoprinter
Local deposition of nanoporous thin-films. When connected to the output of the VSP-G1, the VSP-P1 enables you to print inorganic nanostructured materials with novel properties. The material is built-up of sub 20nm pure particles, and can be printed in patterns locally on any type of substrate.
