Xiton Photonics IXDICE 1342 Laser

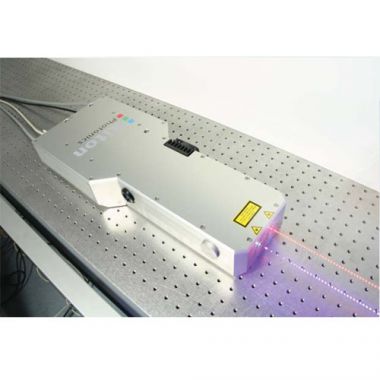

The Xiton Photonics IXDICE 1342 is a high repetition rate solid-state diode pumped Q-switched laser with the unique fundamental wavelength of 1342 nm. It is the successor of the IDOL-C-1342 laser in a more compact laser housing.
Each laser is optimized for high pulse repetition rates in range 40-200 kHz to allow high throughput in material processing applications. Due to high pulse-to-pulse stability and a sealed housing, the IXDICE 1342 is perfectly suited for continuous 24/7 industrial use.
With a wavelength of 1342 nm, the IXDICE 1342 is a perfect choice as a laser tool for silicon processing like stealth dicing or trimming of integrated circuits.
The revised design also provides compliance to US CDRH regulations.
Applications
- Stealth dicing
- Wavelength sensitive processes
- Silicon processing
- Micro-machining
Features
- High repetition rate
- Graphical user interface
- LabVIEW libraries
- CDRH compliance
|
Model |
IXDICE 1342 |
|
Wavelength |
1342nm |
|
Average Power |
8W |
|
Pulse duration |
approx. 50ns |
|
Energy per pulse |
80 μJ |
|
Repetition rate |
40-200 kHz |
|
M2 |
<1.2 |
Data at 100 kHz pulse repetition rate. Specifications are subject to change without notice due to product improvement.
Xiton Photonics IXDICE 1342 Datasheet
