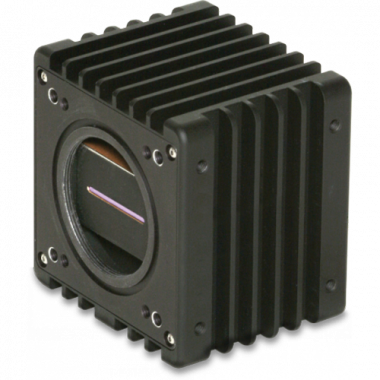

UTC Sensors Unlimited Linescan 1024-LDH Digital Camera, 1024 pixels at 46,000 lps
The UTC Sensors Unlimited versatile LDH-1.7 Linear Digital High speed InGaAs Camera provides 14-bit digital capture into base format Camera Link® interface cards. It utilizes the new LC series of linear arrays, which feature double-sampling, integrate-whileread acquisition and low noise, delivering the high dynamic range demanded by these applications. The camera is available with 500 μm tall pixels for easy alignment in SD-OCT systems, or square 25 μm pixels for high-time resolution machine vision or for PS-OCT.
Features:
- Wavelength response over 0.8 μm to 1.7 μm
- 25 μm pixel pitch with aperture heights of 25 μm or 500 μm
- 1024 pixel arrays
- Over 46,000 lps for 1024 pixels
- Integrate-while-read snapshot acquisition
- 14-bit base Camera Link® compatible output and control
- Operating temperature range of -10 to +50°C
- High dynamic range and quantum efficiency Mounts easily to spectrometers
- Mounts easily to spectrometers
- Optional adapters for C-mount, F-mount or FD mount lenses
Applications:
- Optical Coherence Tomography (OCT)
- Agricultural and food product inspection
- Machine vision for inspection, and monitor of
- continuous processes
- High-speed spectroscopy for moisture or other molecular vibration bands in the 800-1700 nm range
- Telecommunications fiber and waveguide alignment
- Materials classification and sorting
- Remote ground sensing
|
Mechanical |
|
|
Dimensions |
14.5 cm x 7.62 cm x 7.62 cm |
|
Weight |
< 1 kg or 2.2 lbs (no lens or adapter) |
|
Lens Mount |
M42x1-6H with 6 mm focal distance (std.) |
|
Spectrometer Mount |
4 tapped 8-32 holes in 2 inch square pattern |
|
Camera Tripod Mount |
3 tapped ¼-20 holes |
|
Environmental & Power |
|
|
Operating Case Temperature |
-10°C to +50°C |
|
Storage Temperature |
- 20°C to 70°C |
|
Humidity |
Non-condensing |
|
Power Requirements |
AC Adapter: 100-240 VAC, 47-63 Hz, < 1.0 A |
|
Interfaces |
|
|
Control |
MDR 26-pin connector (Camera Link®) |
|
Power |
Hirose HR25-7TR-8S connector |
|
Sync Output |
BNC: 5 V, 50 Ω series terminated, active high: integration active |
|
Trigger: Input |
BNC, Low < 0.5, 3 V > high < 5 V |
|
Status LED |
Green: TEC locked at setpoint |
|
Regulatory Compliance |
|
|
CE |
Meets class A level for emission, immunity & ESD standards |
|
FCC |
Meets requirements for Part 15, Subpart B, Class A, 2006 |
|
Electro-Optical Performance |
|
|
Sensor Format 1 |
1024 pixels on 25 μm pitch with 4 readout ADCs |
|
Optical Aperture (pixel height) 1 |
500 μm or 25 μm (square pixel sharply defined by mask on detector surface) |
|
Peak Quantum Efficiency 1 |
> 70% |
|
Bad Pixel Specification |
White, dark, noisy or pixels exceeding +/- 10 of the mean value when illuminated at 50% of full well. Number of bad pixels limited to a maximum of 1% of array total; no bad neighbors within 5 pixels |
|
Exposure Time 1, 3 |
0.007 ms to 907 ms in corrected preset modes or user programmed in camera clock cycles to >1 s |
|
Trigger Modes 3 |
Free run, single line per trigger, programmable exposure , or gated burst |
|
Sync Output |
Digital signal, high during integration |
|
External Trigger 3 |
Three modes via CC1 or BNC |
|
External Variable ET |
User set by the duration of trigger signal (minimum ET pulse: 10 μs) |
|
External Trigger Jitter |
1 clock cycle: nominally 80 ns |
|
Pixel Rate |
50 Mpix/s |
|
Digital Output Format |
14-bit base Camera Link® compatible |
|
Readout Mode |
Integrate while read, differential double sampling |
|
Corrections (preset OPRs) |
Factory calibrated gain, offset, and bad pixel replace, applicable to the center 90% of the array |
|
Resolution |
1024 x 1 |
|
Pixel Pitch |
25 μm |
|
Line Rate |
> 46,000 lps |
|
Spectral Response |
0.8 to 1.7 μm |
|
|
1Actual formats and performance governed by user-selected SUI linear array purchased with camera (dark current may limit longest usable ET) |
Gain Capacitor Setting:
|
0.1 pF |
1.0 pF |
10.0 pF |
||||
|
|
Typical |
Specification |
Typical |
Specification |
Typical |
Specification |
|
Net full well capacity (Me-) 2 |
1.6 |
>1.1 |
15.9 |
>9.2 |
150 |
>110 |
|
Gain (e-/cnt) 1, 3 |
107 |
|
1000 |
|
9600 |
|
|
Temporal noise (rms counts) 1, 2 |
8 |
< 10.5 |
3.5 |
<4.5 |
2.5 |
<3.5 |
|
Dynamic range 1, 2, 4 |
2000:1 |
>1500:1 |
188 |
>3500:1 |
221 |
>4500:1 |
|
Differential non-linearity 1, 2 |
+/- 1% |
< +/- 2% |
+/- 1% |
< +/- 2% |
+/- 0.8% |
< +/- 2% |
