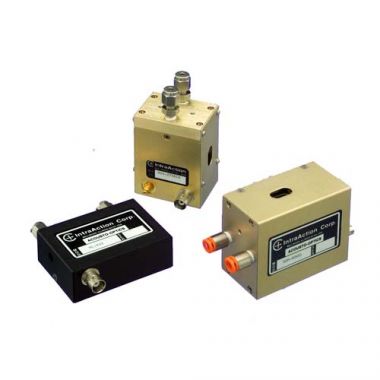

IntraAction MLR Series Mode Locker – Ti:Sapphire

Product Code:

2011

Manufacturer: IntraAction

The MLR Series Mode Locker is an acoustic standing-wave device with resonant mode spacing determined by the thickness of the acousto-optic material. When an integral number of acoustic half wavelengths are present across the material, standing waves are formed and modulate the laser cavity at twice the applied RF frequency.

Description

Concurrent CW mode suppression
Short optical path length
Low acoustic Q
User-specified frequency
Regenerative laser systems
Custom designs available¹
High reliability

¹Specify RF frequency, optical beam diameter, window configuration, and optical wavelength or range.

Specifications

SPECIFICATIONS
Material	Schlieren Grade Fused Silica
Material	Path Length 1.5 cm
Window Configuration²	User specified
Wavelength Range³	700 - 1100 nm
Optical Insertion Loss	< 0.5%
RF Frequency⁴(nominal)	User specified up to 150 MHz
RF Bandwidth	+/- 15%
Mode Spacing	330 kHz or 460 kHz (nominal)
Mode Bandwidth (-3 dB)	200 kHz (near center RF frequency)
Loss Diffraction Efficiency⁵	50%
RF Drive Power⁵	5 Watts
Sound Field Height⁶	3 mm
Laser Polarisation	Linear (parallel to mounting surface)
Size (less connectors)	1.98 D x 1.01 H x 1.19 L inches
	5.03 D x 2.57 H x 3.03 L cm
Temperature Stabilisation⁷	Water Cooling
MODEL	MLR-403DB23 MLR-403BB10
RF Frequency	40 MHz (nominal) 40 MHz (nominal)
Active Aperture	2 mm 3 mm
Window Configuration²	Brewster 2° rhomboid
Wavelength Range	700 - 1100 nm 700 - 900 nm
